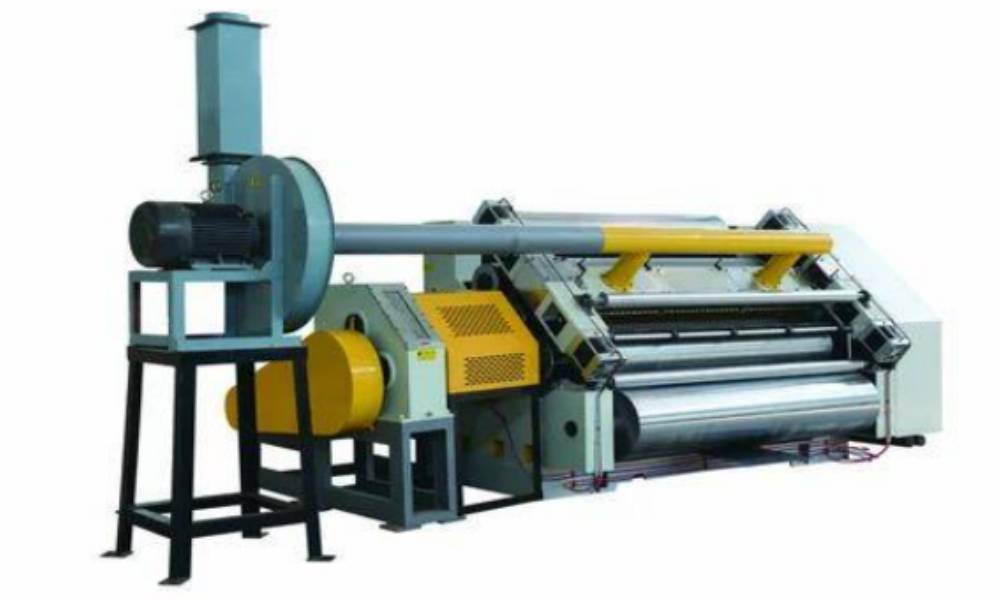

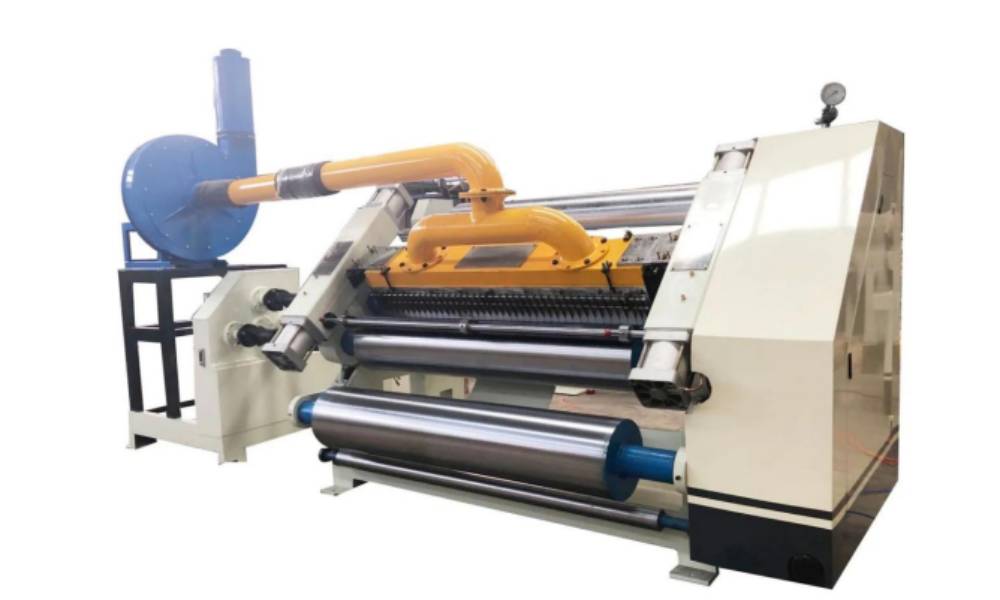

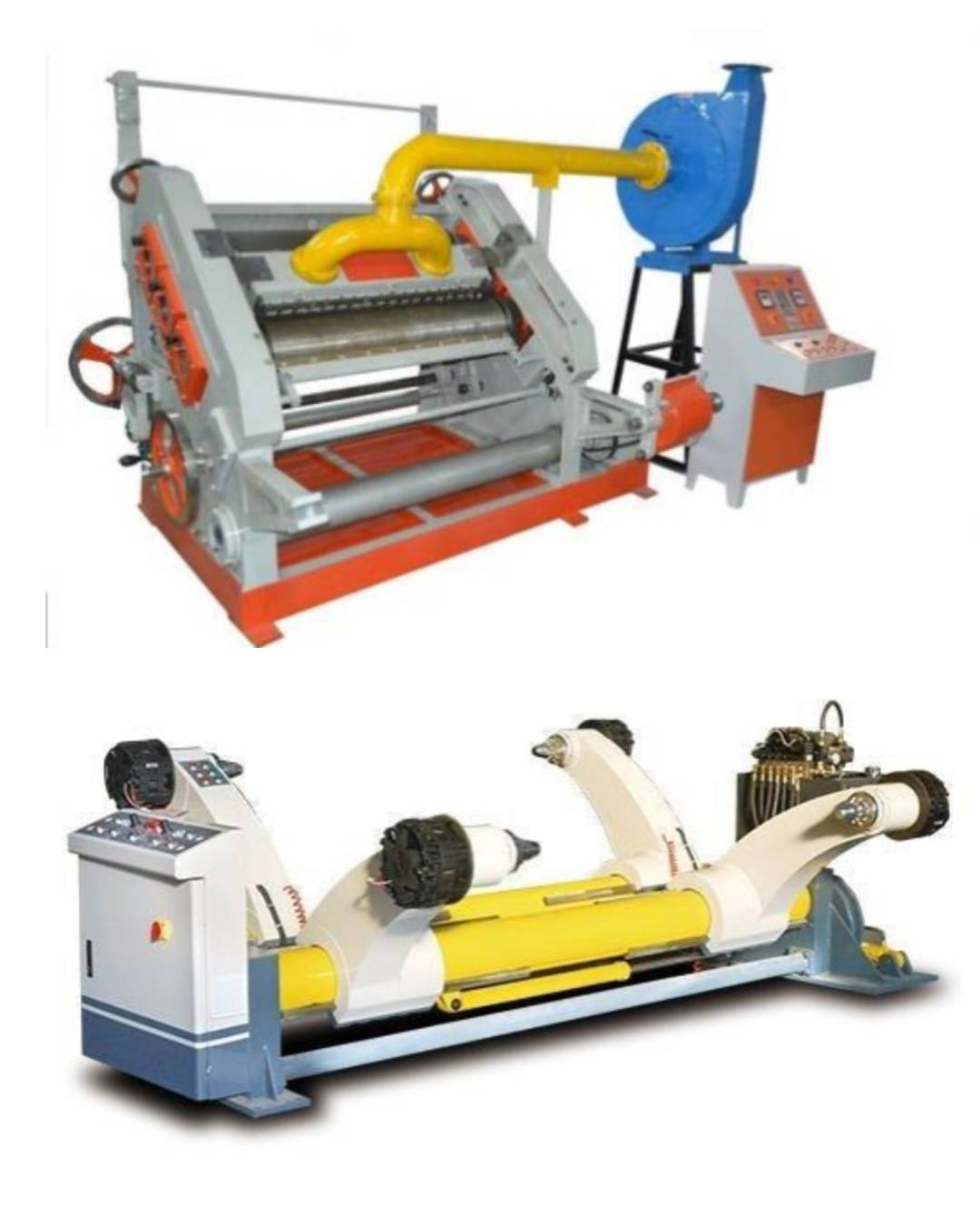

The Machine offers high rate of production and enhance efficiency. The corrugated flute rollers, pressure roll and glue rollers are by Pneumatic adjustment. The flute rollers 48CrMo are mounted on bearing for Smooth Running and Imparts Proper Impression on Paper. TC flute rollers can be provided at an Additional Cost. The middle flute roller is fitted with vaccum suction jacket instead of adaptor which keeps the flute profile stable. Two Pre-heater are provided for demoisturising the paper. Gimble Drive reduces noise and keeps machine running stable. Shaftless Electric/Hydraulic reel stand can be adopted at an additional cost.

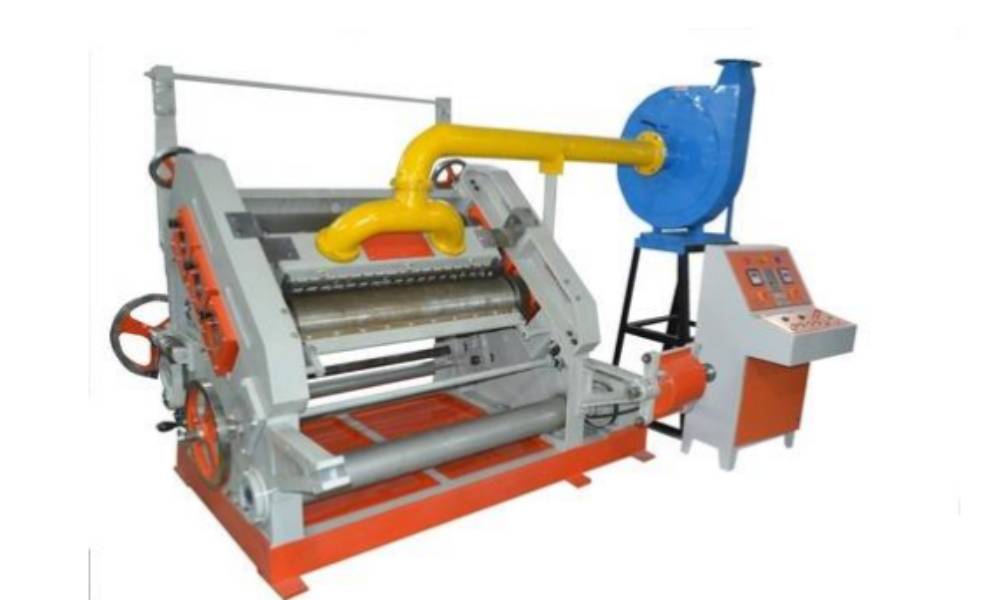

The Machine offers high rate of production and enhance efficiency. The flute rollers are mounted on bearing for Smooth Running and Imparts Proper Impression on Paper. The middle flute roller is fitted with vaccum suction jacket instead of adaptor which keeps the flute profile stable. Two Pre-heater are provided for demoisturising the paper. Gear Box reduces noise and keeps machine running stable. The machine is Equipped with Hydraulic Power Pack Mill Roll Stand.

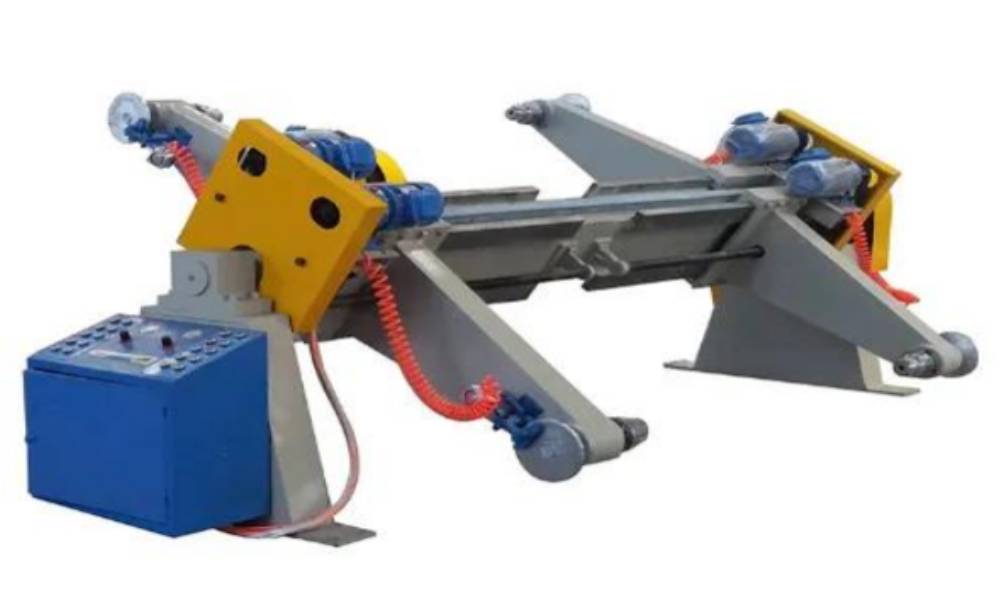

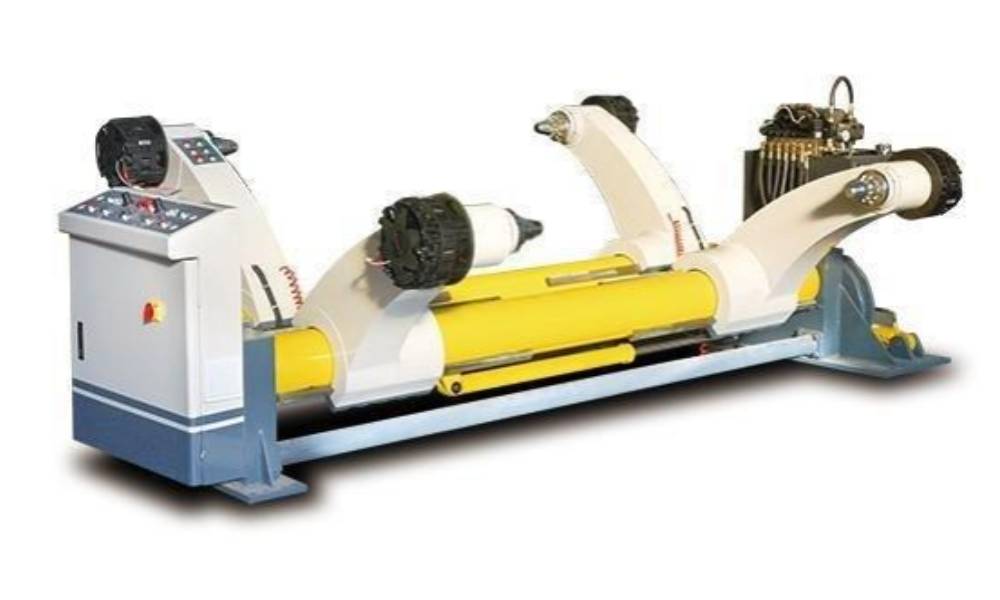

The structure is double rotary shafts with four arms; Support two paper mill rolls on both arms at the same time. Hydraulic control paper mill up- down, Clamp open and centering. Web tention is controlled by pneumatic brake or manual brake toothed chucks are optional. Effective with, 1200mm.- 2800mm. Maximum paper roll diameter; Dia 1500mm. Maximum Support weight: 2.5T/3.5T, Main axis : Dia 242mm. / Dia 270mm.

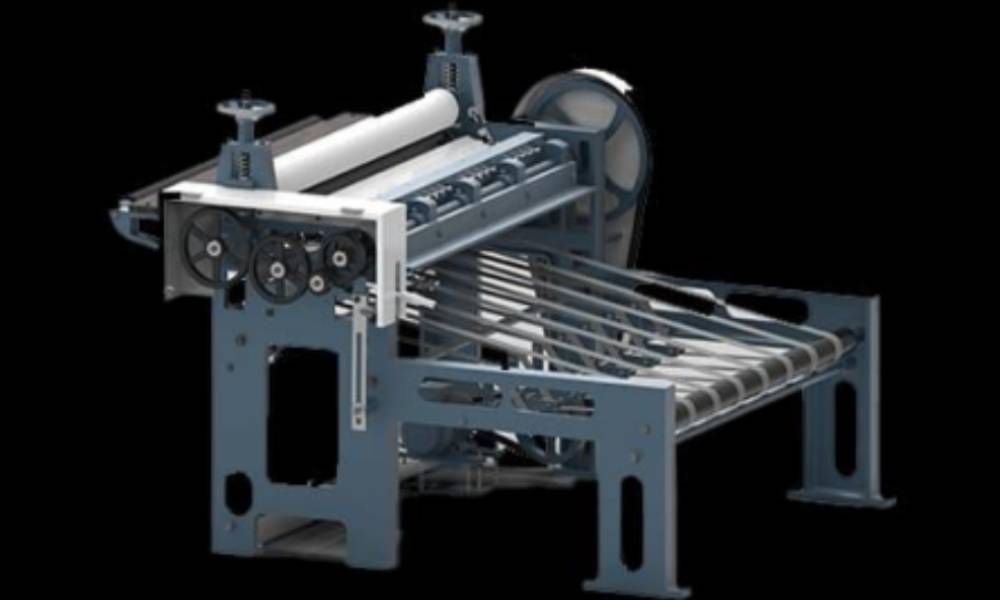

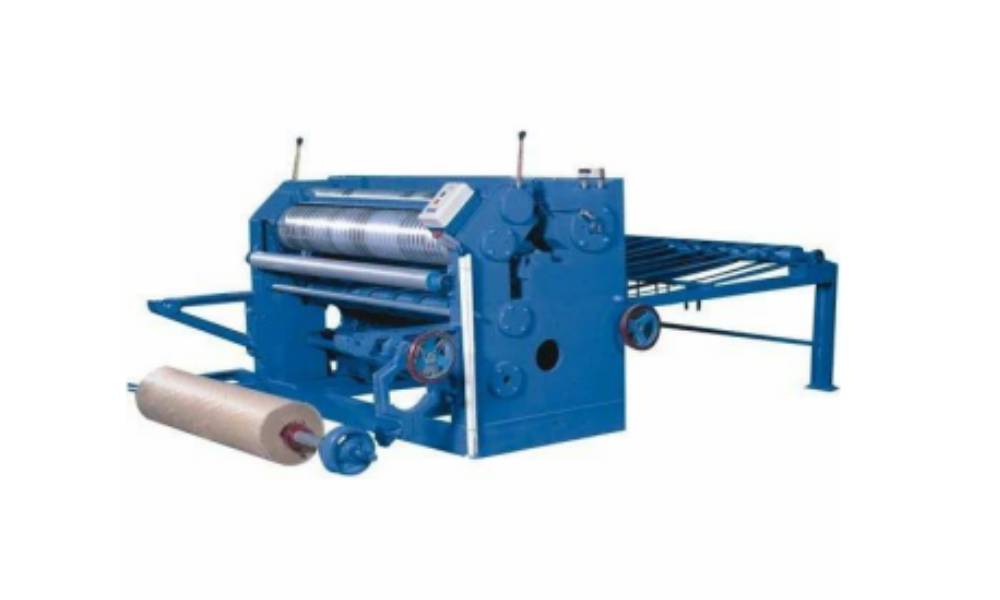

The machine is designed for high production in cutting paper as well as 2 ply corrugated sheet without damaging the flutes. This machine can be used as an independent unit or can be attached to a corrugation machine for direct and accurate sheet cutting, which minimizes the percentage of wastage, PIV gear box is provided for cutting of sheets to the required length. A delivery conveyor is provided to carry the sheets out. Frequency control NC panel or servo control NC panel can be adopted for quick size change and better accuracy at an additional cost.

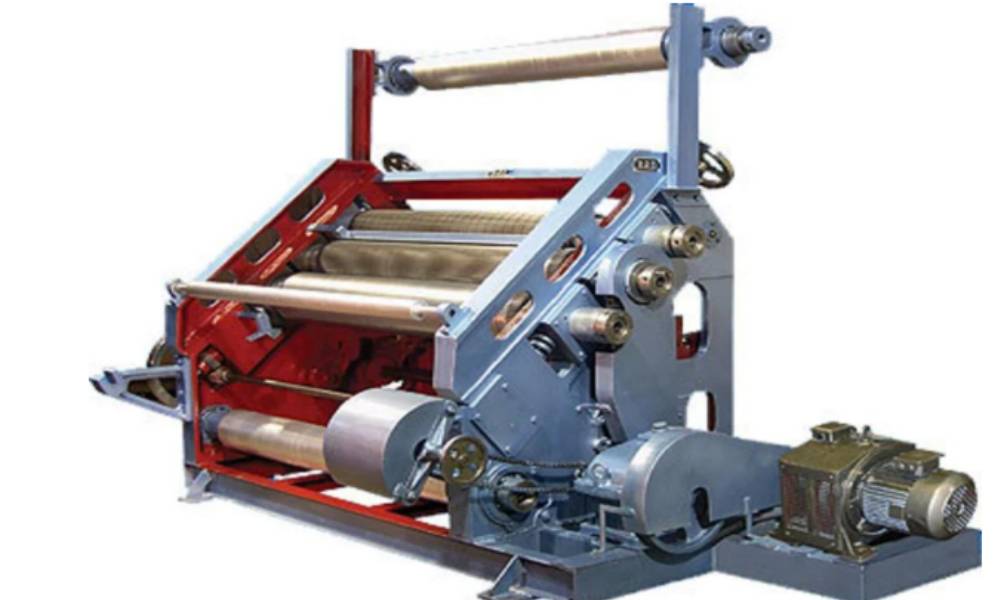

The Machine offers high rate of production and enhance efficiency. The corrugated flute rollers, pressure roll and glue rollers are by Pneumatic adjustment. The flute rollers are mounted on bearing for Smooth Running and Imparts Proper Impression on Paper. 48 CrMo flute rollers can be provided at an Additional Cost. The middle flute roller is fitted with vaccum suction jacket instead of adaptor which keeps the flute profile stable. Two Pre-heater are provided for demoisturising the paper. Gear Box reduces noise and keeps machine running stable. The machine is Equipped with Hydraulic Power Pack Mill Roll Stand. Shaftless /Hydraulic Mill Roll stand can be adopted as an option.

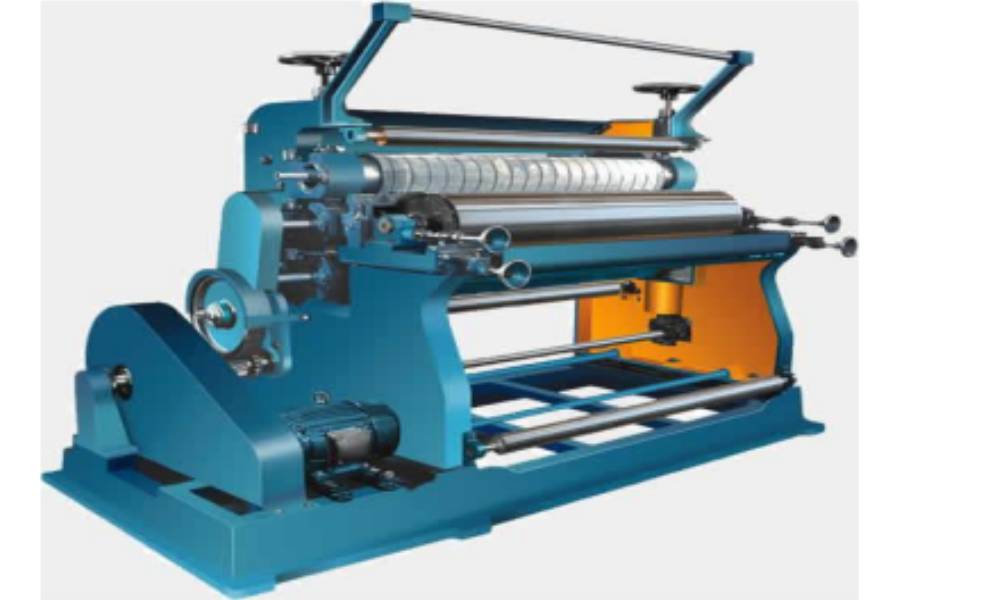

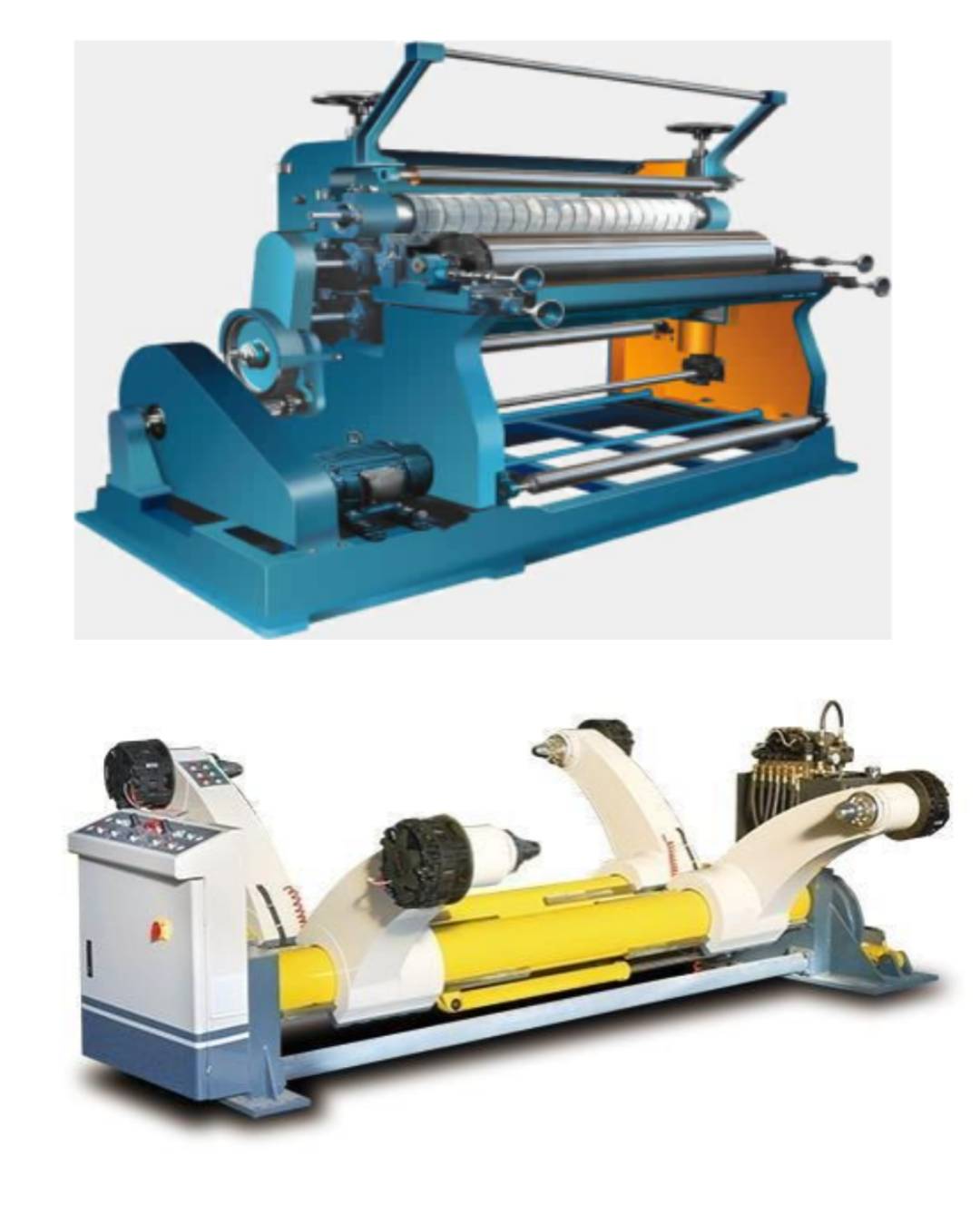

The Machine offers high rate of production and enhance efficiency. The flute rollers are mounted on bearing for Smooth Running and Imparts Proper Impression on Paper. Two Pre-heater are provided for demoisturising the paper. “JUMBO” type hydraulic power pack twin shaft mill roll stand with capacity of lifting upto 1 Ton reel can be provided at an additional cost.

Maximum Paper roll diameter : Dia 1400 mm. Maximum Support Weight : 2 t. The structure is double Rotary shaft with four arms at the same time. Round – Plate type Manual Brake, The web tention is adjusted at any time. Arm clamp and Rotary Structure set fixed torque clutch operate safety.

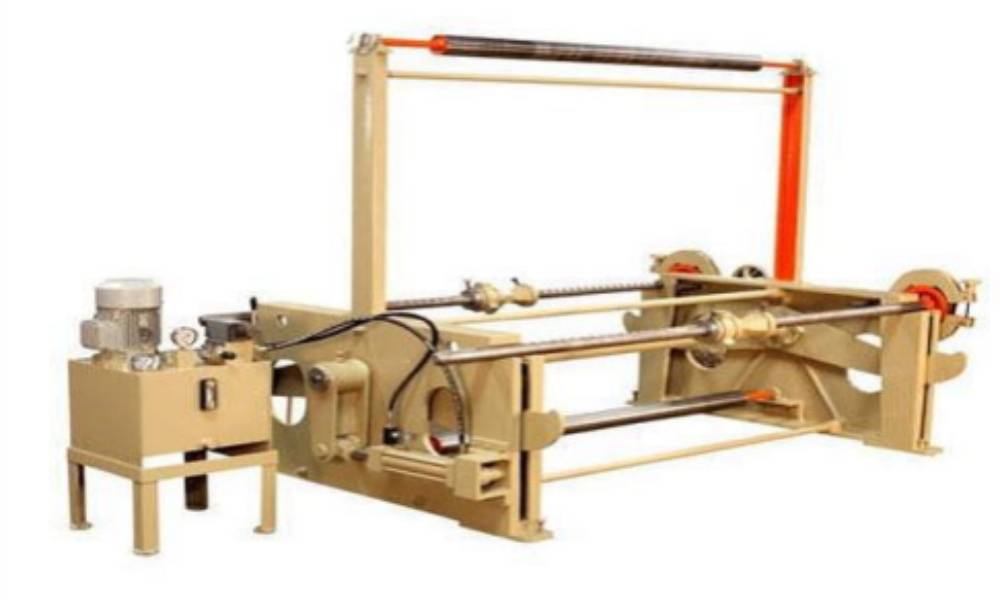

Twin shaft Hydraulic Power pack self-loading mill roll stand is used for lifting paper roll. Regular model or “JUMBO” Type model is available as per Requirement.

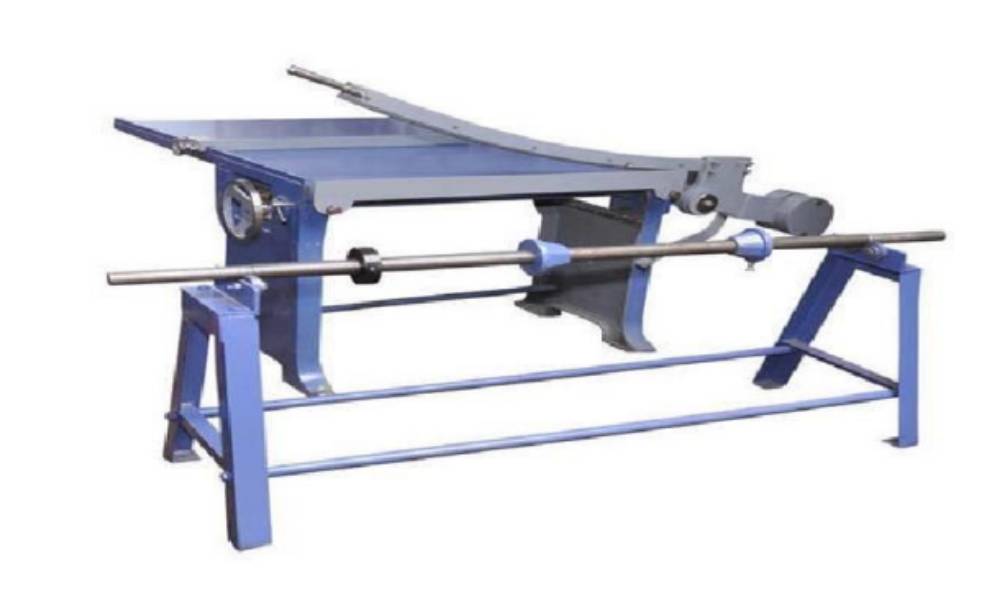

The machine is used to manually cut the corrugation board & liner paper. The cutting arm is well balanced to enable free cutting with the slightest pressure. Front & back guides are provided with the machine for exact cutting.

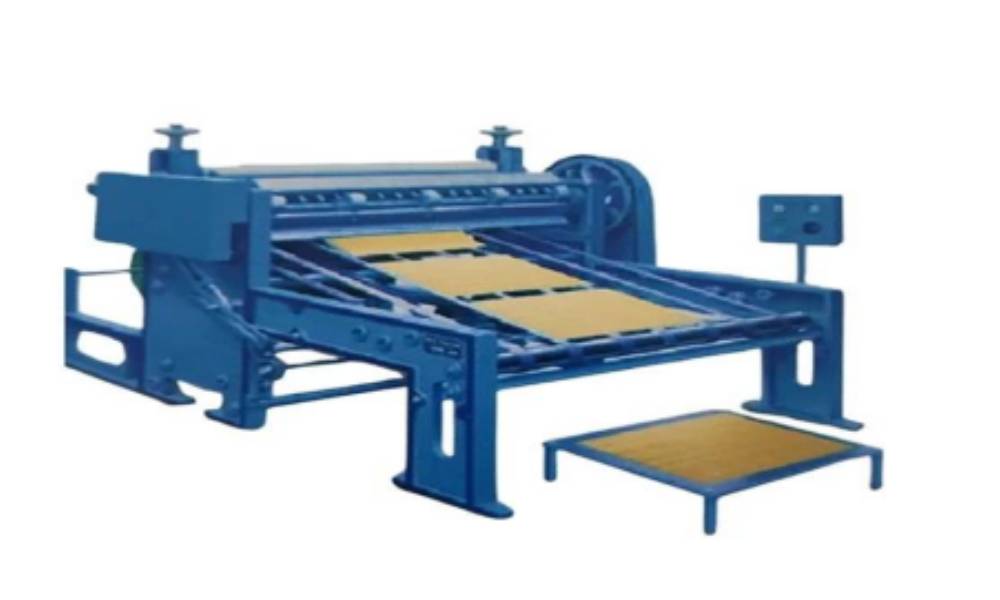

The machine is designed for high production in cutting paper as well as 2 ply corrugated sheet without damaging the flutes. This machine can be used as an independent unit or can be attached to a corrugation machine for direct and accurate sheet cutting, which minimizes the percentage of wastage, PIV gear box is provided for cutting of sheets to the required length. A delivery conveyor is provided to carry the sheets out. Frequency control NC panel or servo control NC panel can be adopted for quick size change and better accuracy at an additional cost.

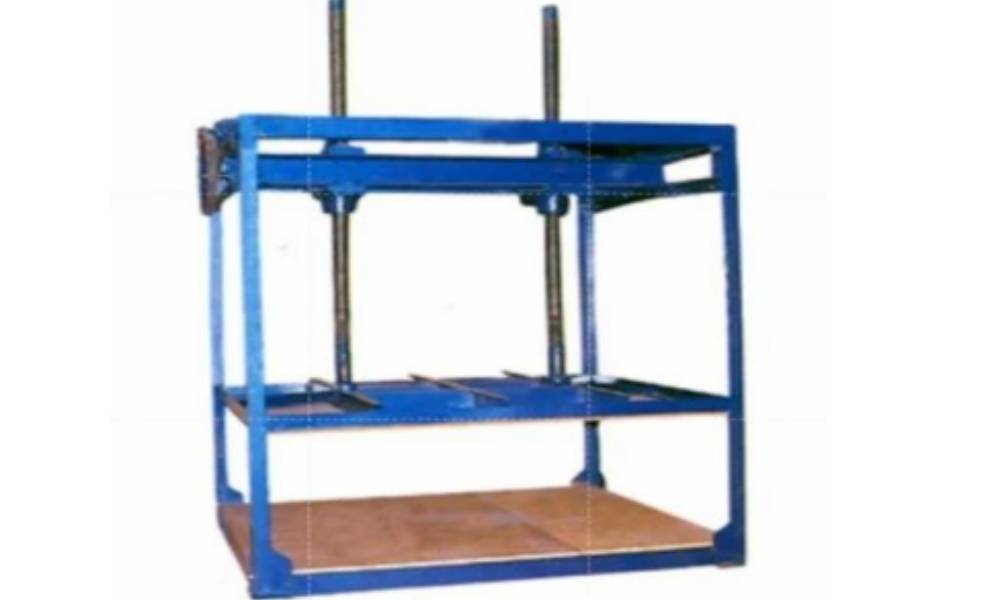

This machine is utilized to obtain quality production of corrugated sheets a strongly built machine has been fabricated for lamination aiming accurate setting of freshly glued sheets. It also helps to maintain the even shape of sheet.

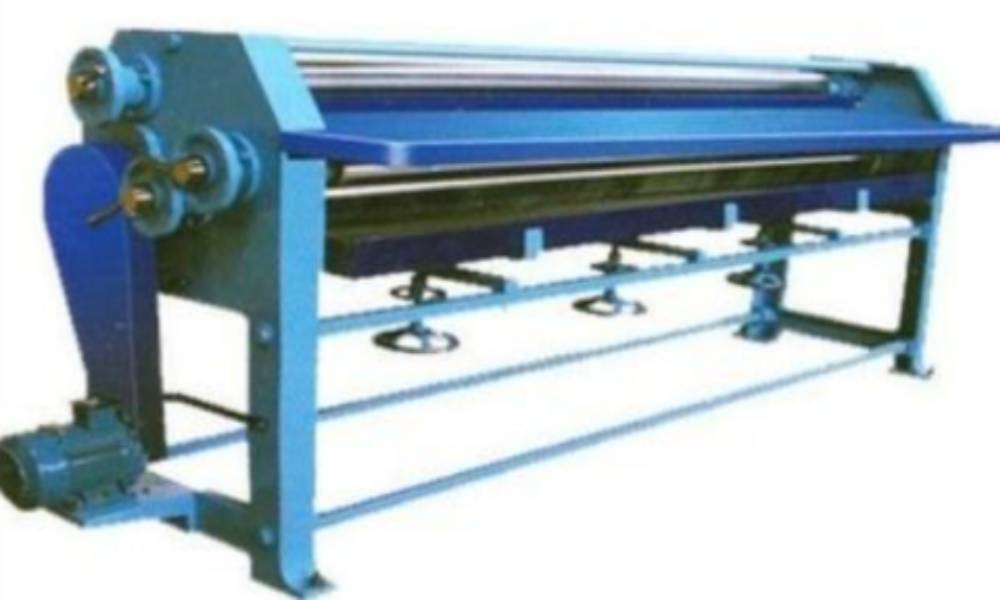

The machine is used for applying glue on the tip of the corrugation 2 ply sheets to make different ply. It consist of three roller which is smoothly finished to ensure even Lamination of boards. Wheels with eccentric bushes are provided to the one roller for the adjustments for optimum application of gum and one for even impression on 2 ply board. Hard chromed rollers are provided for economy and better quality at an additional cost.

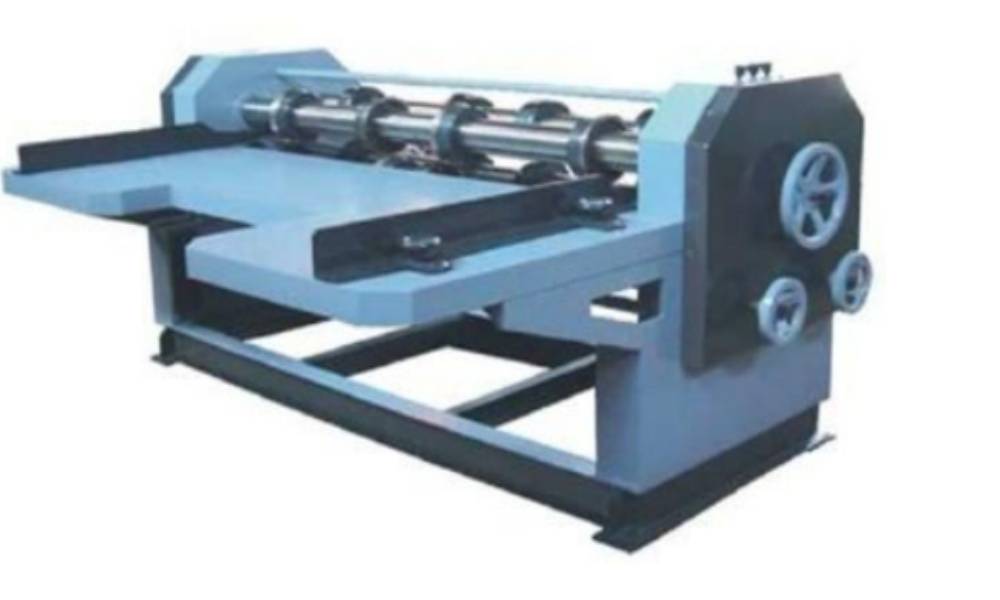

The machine is used for cutting & creasing of corrugated boards simultaneously. The machine is study and contains graded alloy steel knives for smooth cutting. Gauges are provided for accurate cutting & creasing of sheets as per required measurement.

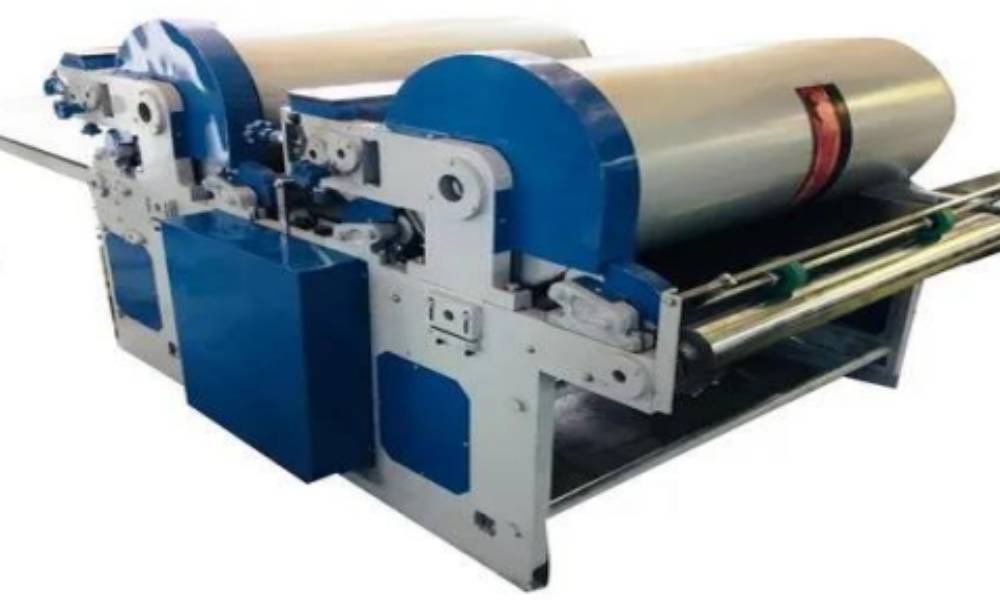

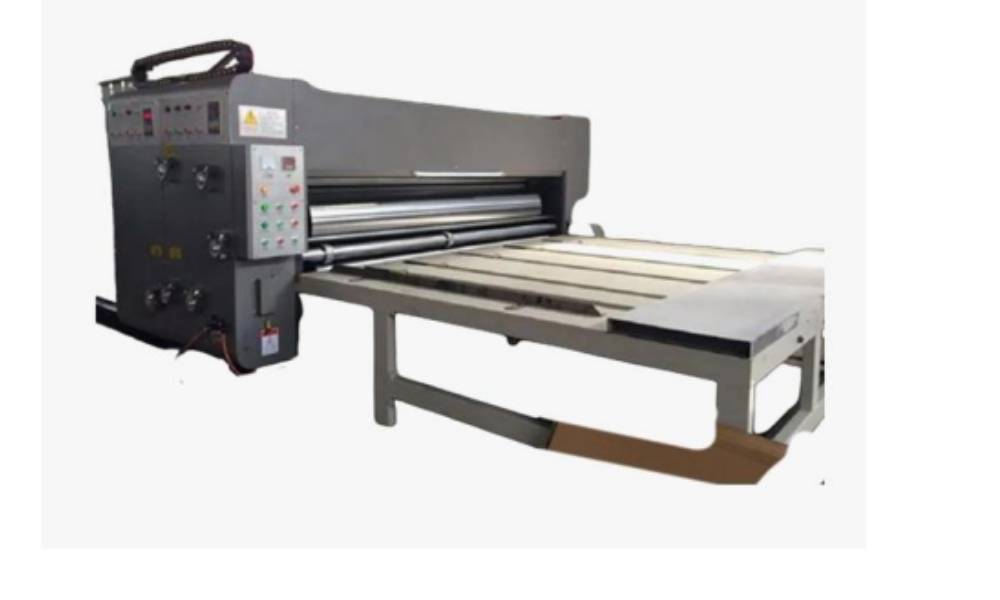

This machine is used for Flexo printing and die cutting of sheets simultaneously. It offers high precision of printing with easy operation. Opening and closing is controlled electrically. Locking up and elevating plate is done by pneumatic system. Printing roller adopts 360 degree phase adjustment, controlled, Electrically even during running machine. Grinding attachment for rubber anvil cover is mounted on the machine. Ring slotter attachment can be adopted at an additional cost.

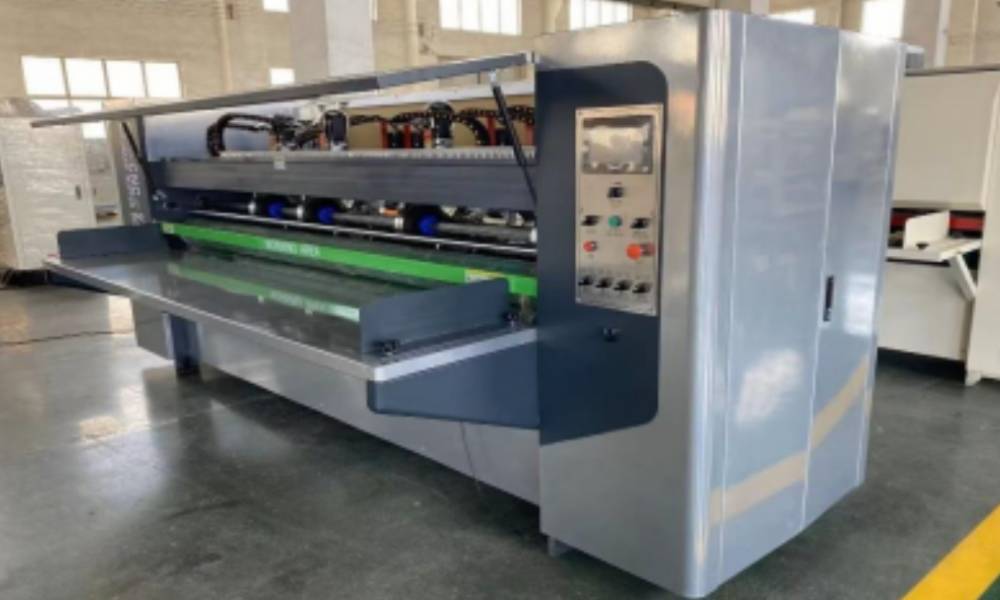

This machine is used for creasing and slitting of paper board. The thin blade makes the paper board edge perfect without raw edges, to promote quality and appearance of paper board.

The machine offers high rate of precision and enhanced efficiency. It print paper, board and corrugated sheets with either water based ink or solvent based ink. Hard chromium plated impression roller is provided for sharp impression, quality printing & long life. Variable speed controller with A.C. motor & electronic digital counter with panel box is provided for economy in wastage and better quality.

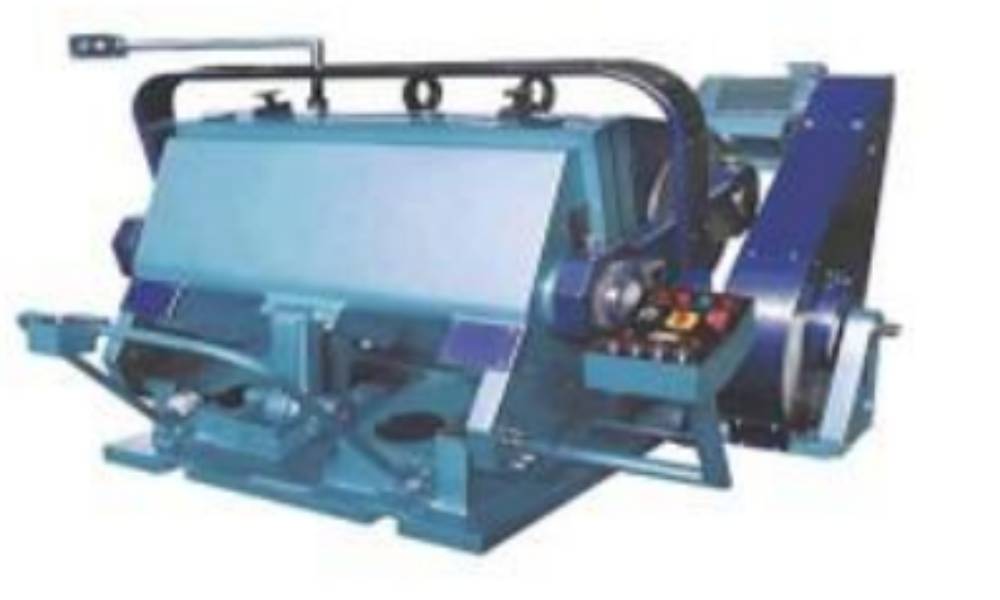

The heavy-duty platen punching and embossing machine is utilized for cutting, creasing, embossing and punching of corrugated sheets. The drive and stop to the platen is transferred by an electromagnetic clutch. Two safety guides are provided for instant stopping of the machine emergency.

The machine is used as a substitute of the traditional stepping method. It has a simple operation system, Reliability and Quick change of size.

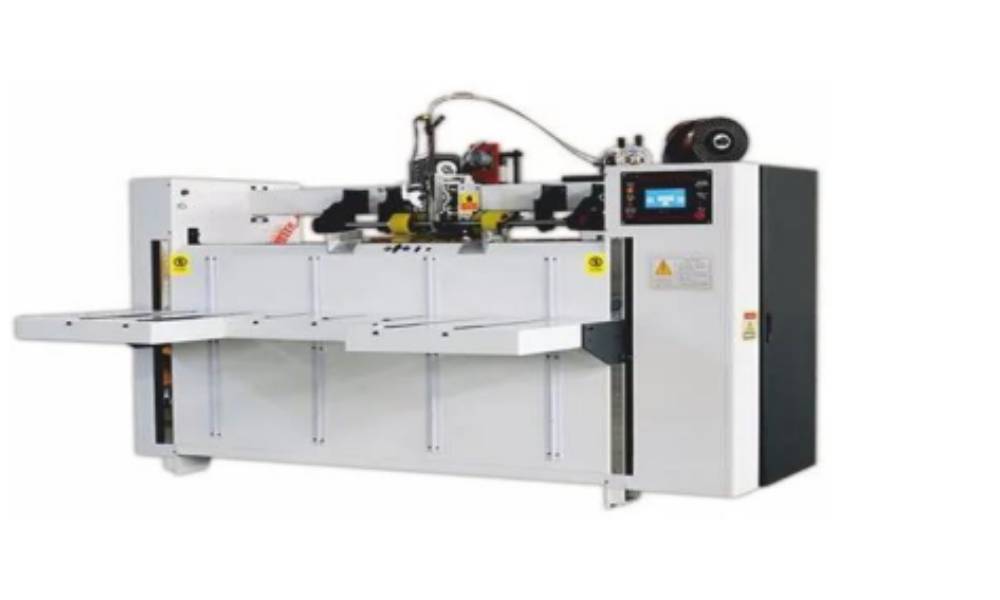

The semi auto dual servo driven stitcher machine is able to stitch corrugated cartoon. The machine is controlled by PLC and equipped with a touch screen which is convenient for setup the parameter of stitching pitch, Quantity of nail, type of nail and position of back plate. The position back plate is precisely controlled by the stepping motor, the position adjustment is quick and convenient. Nail pitch is free adjusted and set by the screen between 30-120 mm. Alarm system is available when machine is out of nail.
